Notebird - A note manager

Notebird is a desktop app aimed at managing notes of text. These notes can contain html tags and clickable links. The app could be ported to a larger database such as PostgreSQL or Oracle by modifying the dbhelper module.

This is my first project using the Qt framework and was solely done for learning purposes. User interfaces were created with the Qt Creator software, and they are loaded dinamically using PySide2.

How to use the app?
Which modules were used?
Which are the requirements?
How can I install it?
How does it look?
Structure
License

How to use

The app starts at the login window. To use the application the user needs to have created an account at the sign up window. With said account, the user logs in the app at the login window, and the main window (crud window) is displayed.

The crud window is divided in 3 tabs:

The main one displays the first note created by the user, if any, along with some metadata. The user can go across the rest of their notes using the spinner.
The second tab lets the user update, delete, and create new notes. The user can select the note they want to edit using another spinner.
Finally, the third tab allows the user to change their username, name or password (the current password is required to change any of these data). They can also change or delete their current avatar (no password required, images are stored as 175x175 png images under the /avatars folder).

Modules used

time - add metadata to the notes
typing - type hinting
logging - log relevant things happening in the app
pathlib - create path to files independently of the OS used
sqlite3 - lightweight database to store data
passlib - hashed and salted passwords
argparse - parse command line options
PySide2 - python wrapper for the Qt framework
pillow (PIL) - avatar creation

Requirements

Requires Python 3.6+ (with pip).

Installation

Clone the repository or download and extract the zip or tarball file in an empty folder on your computer.

Navigate until the recently created folder and install dependencies:

Pipenv:
```
  pipenv install
```
Pip:
```
  pip install -r requirements.txt
```

Run the application:

Pipenv:
```
  pipenv run notebird/notebird.py
```
Other:
```
  python notebird/notebird.py
```

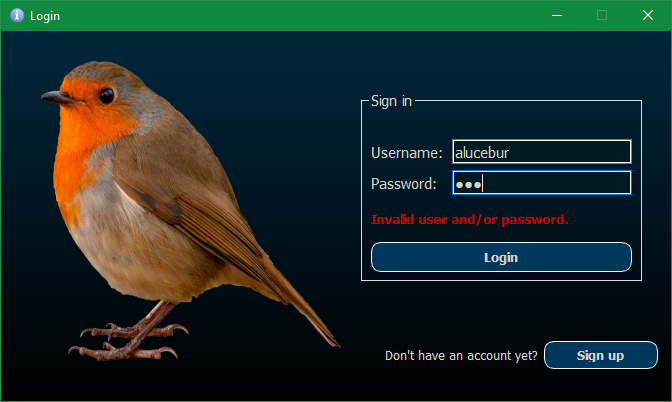

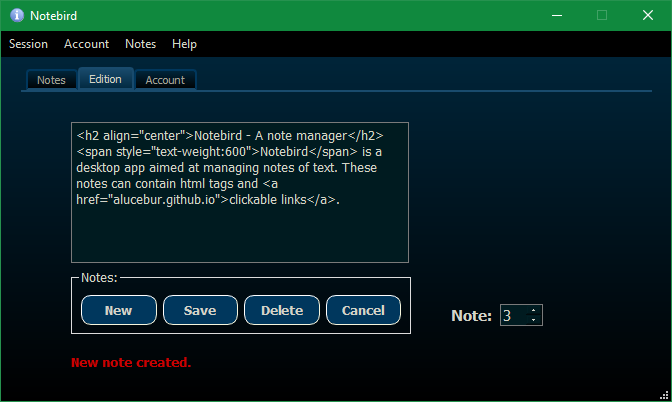

If you prefer it, you can start the application in dark mode. To do so, run the program with the option -d or --dark (running the program with the option -h or --help will show the help):

    pipenv run notebird/notebird.py --dark
    python notebird/notebird.py --dark

This application uses the logging module to send info to standard output. By default the log level is set to DEBUG. You can change it to INFO editing this line in notebird.py as follow:

    logging.basicConfig(format=format, level=logging.INFO)

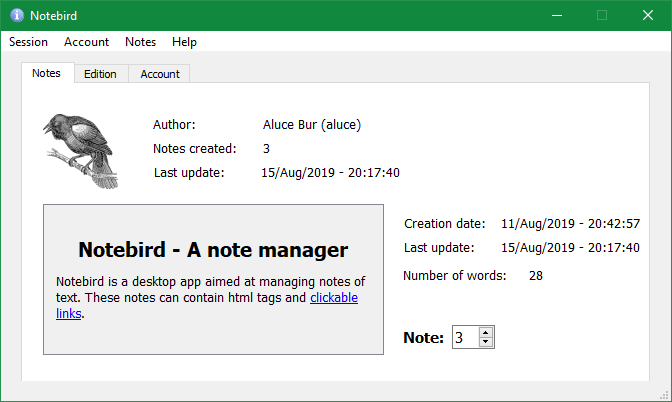

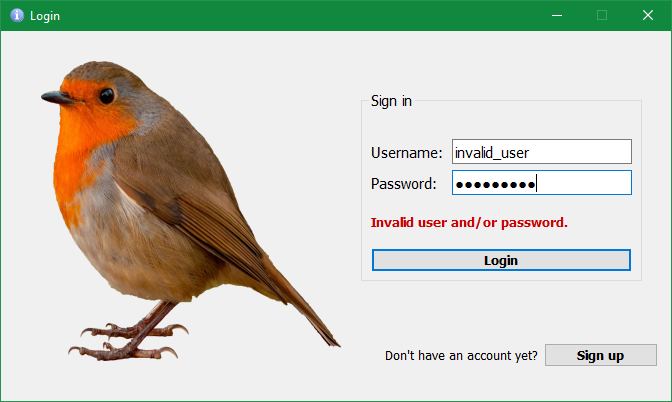

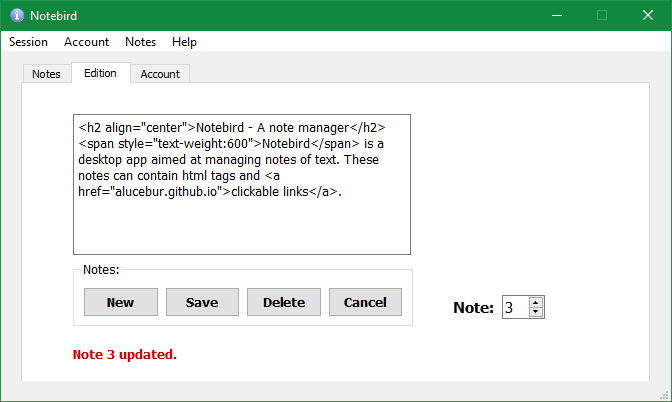

Screenshots

Structure

├──  notebird
│    ├── db
│    │   ├── __init__.py
│    │   ├── dbhelper.py
│    │   └── helpers.py
│    ├── utils
│    │   ├── __init__.py
│    │   ├── consts.py
│    │   ├── custom_widgets.py
│    │   ├── exceptions.py
│    │   ├── pyside_dynamic.py
│    │   ├── security.py
│    │   └── validations.py
│    ├── windows
│    │   ├── avatars
│    │   │   └── 0.png
│    │   ├── interfaces
│    │   │   ├── assets
│    │   │   │   ├── icon.svg
│    │   │   │   ├── rubecula.png
│    │   │   │   ├── White_arrow_down.svg
│    │   │   │   ├── White_arrow_up.svg
│    │   │   │   └── White_dot.svg
│    │   │   ├── crud.ui
│    │   │   ├── login.ui
│    │   │   └── signup.ui
│    │   ├── __init__.py
│    │   ├── crud.py
│    │   ├── login.py
│    │   └── signup.py
│    ├── notebird.py
│    └── style.qss
├──  docs
│    ├── layouts
│    │   └── default.html
│    ├── screenshots
│    │   ├── avatar.png
│    │   ├── edition.png
│    │   ├── info.png
│    │   ├── login.png
│    │   ├── note.png
│    │   └── signup.png
│    ├── _config.yml
│    ├── 404.html
│    └── index.md
├──  .gitignore
├──  Pipfile
├──  Pipfile.lock
├──  readme.md
├──  requirements.txt
└──  UNLICENSE

./notebird
- notebird.py: main module that initializes all the necessary stuff
- style.qss: stylesheet for dark-mode
./notebird/db:
- dbhelper.py: module to connect and operate with the database
- helpers.py: module with functions to initialize database and close connection
Inside this folder a SQLite database will be created at running time.
./notebird/utils:
- consts.py: module with paths to different resources
- custom_widgets.py: module with custom widget classes
- exceptions.py: module with user-defined exceptions to abstract the database
- pyside_dynamic.py: module to load a user interface dynamically with PySide2
- security.py: module to operate with hashed and salted passwords
- validations.py: module with functions to validate user inputs
./notebird/windows:
- crud.py: module that loads the crud window where users can manage their data
- login.py: module that loads the login window where users can log into the database
- signup.py: module that loads the sign up window where users can create acccounts
Avatars subfolder is used to store users’ avatars, which are named after the users’ ids.
./notebird/windows/interfaces:
- crud.ui: user interface for the crud window
- login.ui: user interface for the login window
- signup.ui: user interface for the sign up window
Assets subfolder contains images to be displayed by these ui files.

License

The majority of this project code is Unlicensed, feel free to use it as you want. See exceptions below.

Images used for this project are under Public Domain:

rubecula.png: (modified from original) Allan Cox (@coxy34) in unsplash.com under Public Domain.
icon.svg: El_T in wikipedia.org under Public Domain.
0.png: Clker-Free-Vector-Images in pixabay.com under Public Domain.
White_arrow_up.svg: Madecco in wikipedia.org under Public Domain.
White_arrow_down.svg: Madecco in wikipedia.org under Public Domain.
White_dot.svg: Sameboat in wikipedia.org under Public Domain.

pyside_dynamic module is a copyrighted work by Sebastian Wiesner. It was modified to make it work with PySide2.
